The PMEG2015EA is a Schottky diode from Philips with the following features: ultra high-speed switching, very low forward voltage, very small plastic SMD package.

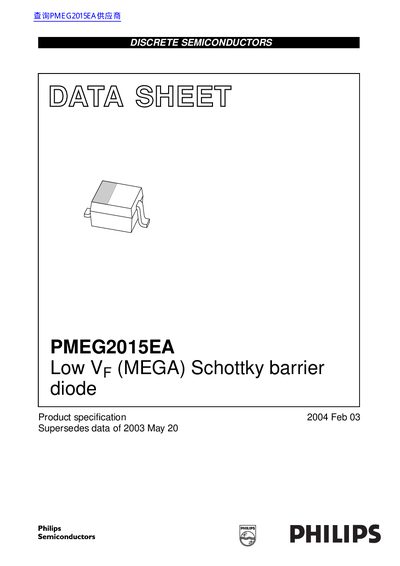

This document is a product specification datasheet for the PMEG2015EA, a discrete semiconductor device. It describes a Low Vf (MEGA) Schottky barrier diode designed for ultra-high-speed switching and voltage clamping applications. The device features an integrated guard ring and is encapsulated in a small SOD323 (SC-76) plastic surface-mounted package.
| Forward current | 1.5 A |
|---|---|
| Reverse voltage | 20 V |
| Continuous reverse voltage | 20 V |
| Continuous forward current | 1.5 A |
| Non-repetitive peak forward current | 10 A |
| Storage temperature | -65 +150 °C |
| Junction temperature | 125 °C |
| Package type | SOD323 |
| Diode capacitance | 19 pF |
The marking code is S5.
The marking bar indicates the cathode.
The thermal resistance from junction to ambient is 450 K/W.
