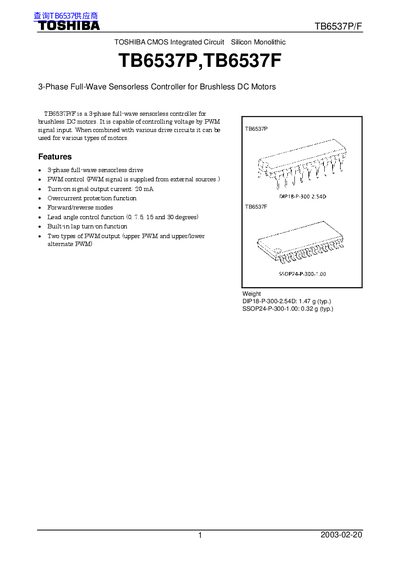

TB6537P/F is a three-phase full-wave sensorless controller for brushless DC motors manufactured by TOSHIBA. It supports PWM control, overcurrent protection, forward/reverse modes, lead angle control function.
The Toshiba TB6537P and TB6537F are integrated circuits functioning as 3-phase full-wave sensorless controllers for brushless DC (BLDC) motors. These devices control motor voltage using PWM signals supplied from external sources and can be utilized with various drive circuits to operate different types of motors.
The chips feature a built-in lap turn-on function, overcurrent protection, and lead angle control capabilities ranging from 0 to 30 degrees. They offer two types of PWM output configurations: upper PWM or upper/lower alternate PWM. The TB6537P is available in an 18-pin DIP package, while the TB6537F comes in a 24-pin SSOP package.
| Product Type | 3-Phase Full-Wave Sensorless Controller for Brushless DC Motors |
|---|---|
| Control Method | PWM signal input |
| Turn-on Signal Output Current | 20 mA |
| Lead Angle Control Options | 0, 7.5, 15 and 30 degrees |
| TB6537P Package Type | DIP18-P-300-2.54D |
| TB6537F Package Type | SSOP24-P-300-1.00 |
| TB6537P Weight (typical) | 1.47 g |
| TB6537F Weight (typical) | 0.32 g |
When SEL_LAP is High, the turn-on degree is fixed at 120 degrees.
The device supports four specific lead angle settings: 0, 7.5, 15, and 30 degrees.
The controller provides a turn-on signal output current of 20 mA.
The typical weight for the SSOP24-P-300-1.00 package is 0.32 g.
