Toshiba 2SJ201 Field Effect Transistor Datasheet

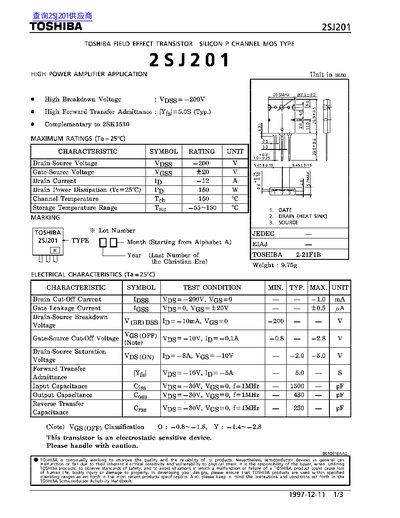

Toshiba 2SJ201 Field Effect Transistor Datasheet - cover page
Brand
Toshiba
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
3
File format
PDF
File size
176 KB
Published
07 June, 2012
Updated
07 June, 2012
MD5 checksum
B84ECAB4D3247767277286D20CE12FB8

About this manual

This document is a technical datasheet for the Toshiba 2SJ201, a silicon P-channel field effect transistor designed for high power amplifier applications. It specifies that the device has a drain-source breakdown voltage of -200V and a continuous drain current rating of -12A.

What's inside

  • Maximum Ratings
  • Electrical Characteristics
  • Package Marking
  • Safe Operating Area
  • Switching Time

Frequently asked questions

What is the maximum power dissipation at 25°C case temperature?

The maximum drain power dissipation is 150 W when the case temperature is 25°C.

How should this electrostatic sensitive device be handled?

This transistor must be handled with caution because it is an electrostatic sensitive device.
