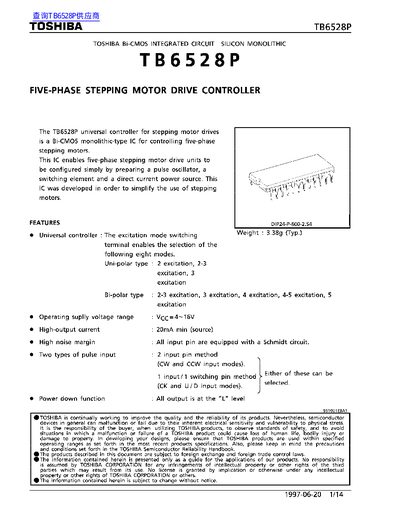

The TB6528P is a universal controller designed to simplify the configuration of five-phase stepping motor drives. It functions as a Bi-CMOS integrated circuit that allows users to select from eight different excitation modes, including uni-polar and bi-polar types.
Key features include high-output current capabilities (minimum 20mA source), high noise margins via Schmidt circuits on input pins, and flexible pulse input methods. The device supports operating supply voltages between 4V and 16V.
| Package Type | DIP24-P-600-2.54 |
|---|---|
| Weight | 3.389g (Typ.) |
| Operating Supply Voltage Range | 4~16V |
| High-Output Current (Source) | 20mA min |
The controller supports eight modes: Uni-polar type (2, 2-3, and 3 excitation) and Bi-polar type (2-3, 3, 4, 4-5, and 5 excitation).
The reset function moves the phase home position across to the excitation status.
