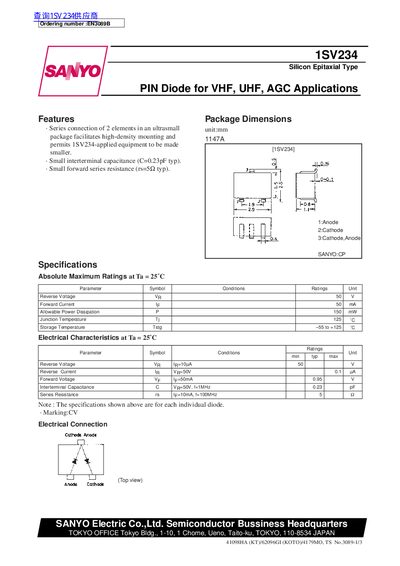

The 1SV234 is a PIN diode manufactured by SANYO. It is suitable for VHF, UHF, and AGC applications. The diode has a small package, 2 diodes in a small package in series, small terminal capacitance, and small forward series resistance.
The document describes the Sanyo 1SV234, a silicon epitaxial type PIN diode intended for VHF, UHF, and Automatic Gain Control (AGC) applications. Key features include the ability to connect two elements in series within an ultrasmall unit package to facilitate high-density mounting, as well as low interterminal capacitance of 0.23 pF typical and small forward series resistance.
| Forward Current (IF) | 50 mA |
|---|---|
| Allowable Power Dissipation (P) | 150 mW |
| Storage Temperature (Tstg) | -55 to +125 C |
| Reverse Current (IR) at VR=50V | 0.1 uA |
| Forward Voltage (VF) at IF=50mA | 0.95 V |
| Interterminal Capacitance (C) | 0.23 pF |
The Sanyo 1SV234 is designed for VHF, UHF, and AGC (Automatic Gain Control) applications.
The typical interterminal capacitance is 0.23 pF.
The marking code for the 1SV234 diode is CV.
