1SV268 is a PIN diode produced by SANYO. Its maximum reverse voltage is 50V, maximum forward current is 100mA, maximum power consumption is 1.0W, and storage temperature range is -55℃ to +125℃.

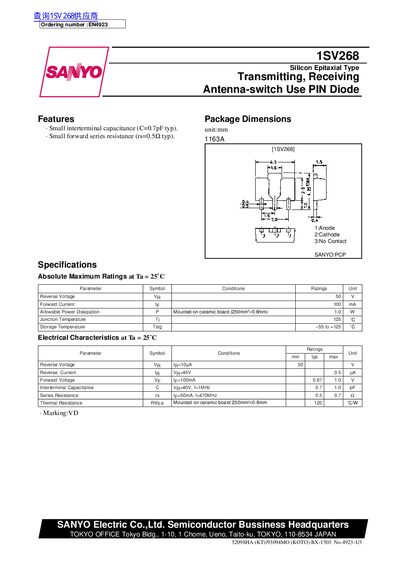

This document is a technical datasheet for the SANYO 1SV268, a Silicon Epitaxial Type Transmitting and Receiving Antenna-switch Use PIN Diode. The device is characterized by small interterminal capacitance (0.7pF typical) and low forward series resistance (0.5Ω typical).
| Reverse Voltage | 50 V |
|---|---|
| Forward Current | 100 mA |
| Allowable Power Dissipation | 1.0 W |
| Junction Temperature | 125 °C |
| Storage Temperature | -55 to +125 °C |
| Interterminal Capacitance | 0.7 pF typ |
| Series Resistance | 0.5 Ω typ |
The absolute maximum reverse voltage rating is 50 V.
The allowable power dissipation is 1.0 W when mounted on a ceramic board.
