This document describes a product from SANYO, which is a silicon epitaxial pin diode variable resistance attenuator. The product has an ultrasmall-sized package that facilitates high-density mounting and allows for smaller equipment. Additionally, it has small interterminal capacitance.

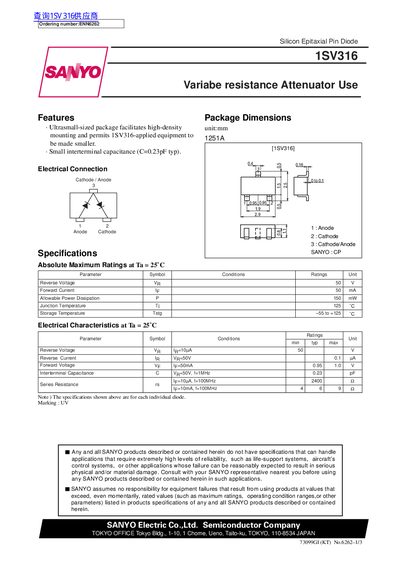

This document describes the SANYO 1SV316, a variable resistance attenuator utilizing an ultrasmall-sized package. Key features include high-density mounting capability and small interterminal capacitance (0.23pF typical). The device is designed to facilitate smaller equipment designs while maintaining specific electrical performance metrics.
| Reverse Voltage (VR) | 50 V |
|---|---|
| Forward Current (IF) | 50 mA |
| Allowable Power Dissipation (P) | 150 mW |
| Junction Temperature (Tj) | 125 °C |
| Interterminal Capacitance (Cc) | 0.23 pF typ. |
The typical interterminal capacitance is 0.23 pF.
The allowable storage temperature range is from -55 to +125 °C.
