1SV267 is a PIN diode from SANYO. It is suitable for VHF, UHF and AGC applications. The diode features low reverse voltage, low reverse current, low capacitance and low forward series resistance.

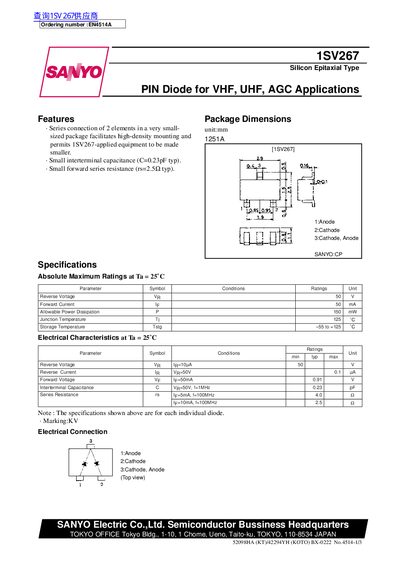

This document is a technical datasheet for the SANYO 1SV267, a Silicon Epitaxial Type PIN Diode intended for VHF, UHF, and Automatic Gain Control (AGC) applications. The device features a very small-sized package that facilitates high-density mounting and allows for smaller applied equipment.
| Reverse Voltage | 50 V |
|---|---|
| Forward Current | 50 mA |
| Allowable Power Dissipation | 150 mW |
| Junction Temperature | -65 to +125 *C |
| Storage Temperature | -55 to +125 *C |
| Interterminal Capacitance | 0.23 pF typ |
| Series Resistance | 2.5 ohm typ |
The absolute maximum reverse voltage rating is 50 V.
The allowable forward current is rated at 50 mA.
The typical interterminal capacitance is 0.23 pF.
