1SV266 is a PIN diode produced by SANYO. It is mainly used in VHF, UHF, AGC and other scenarios. This diode has the characteristics of small package, low reverse voltage, low reverse current, and low series resistance.

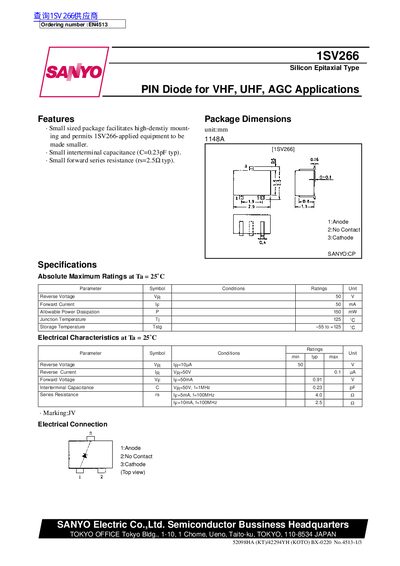

This document is a technical datasheet for the SANYO 1SV266, a silicon epitaxial type PIN diode intended for VHF, UHF, and AGC applications. The device features a small-sized package with low interterminal capacitance (0.23pF typical) and low forward series resistance. This manual is written in Japanese.
| Reverse Voltage | 50 V |
|---|---|
| Forward Current | 50 mA |
| Allowable Power Dissipation | 150 mW |
| Junction Temperature | 125 C |
| Storage Temperature | -55 to +125 C |
| Interterminal Capacitance | 0.23 pF |
| Series Resistance (IF=5mA) | 4.0 Ohm |
| Series Resistance (IF=10mA) | 2.5 Ohm |
The device is designed for VHF, UHF, and AGC applications.
