1SV315 is a high-performance Schottky diode produced by SANYO. Its features are small size and small capacitance. It is suitable for high-density mounting.

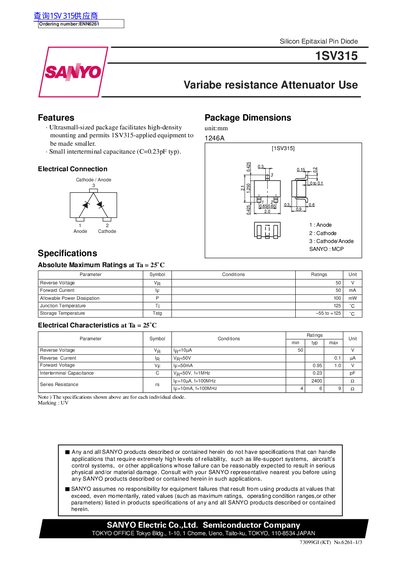

The document describes the SANYO 1SV315, a variable resistance attenuator utilizing a silicon epitaxial pin diode. It highlights features such as an ultrasmall-sized package that facilitates high-density mounting and permits applied equipment to be made smaller. The device also offers small interterminal capacitance.
| Reverse Voltage | 50 V |
|---|---|
| Forward Current | 50 mA |
| Allowable Power Dissipation | 100 mW |
| Junction Temperature | -55 to +125 °C |
| Interterminal Capacitance (typ) | 0.23 pF |
The maximum reverse voltage is 50 V and the maximum forward current is 50 mA.
The forward voltage ranges from a minimum of 0.95 V to a maximum of 1.0 V.
