1SV294 is a variable resistance attenuator produced by SANYO. Its features are small size, small capacitance and small resistance.

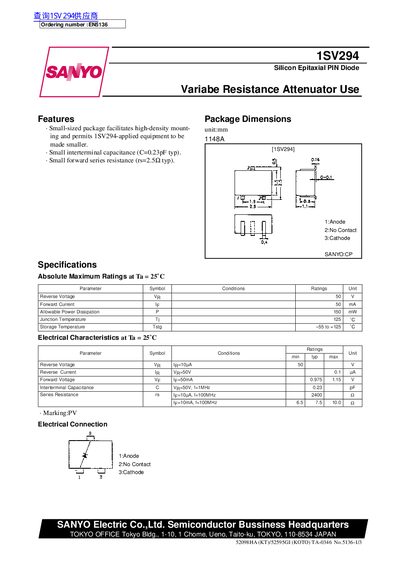

This document is a datasheet for the Sanyo 1SV294, a Silicon Epitaxial PIN Diode designed to function as a variable resistance attenuator. The device features a small-sized package with low interterminal capacitance (0.23pF typical) and series resistance.
| Reverse Voltage | 50 V |
|---|---|
| Forward Current | 50 mA |
| Allowable Power Dissipation | 150 mW |
| Junction Temperature | 125 C |
| Interterminal Capacitance | 0.23 pF |
The device has a maximum reverse voltage rating of 50 V.
The allowable power dissipation is rated at 150 mW.
The typical interterminal capacitance is 0.23 pF.
