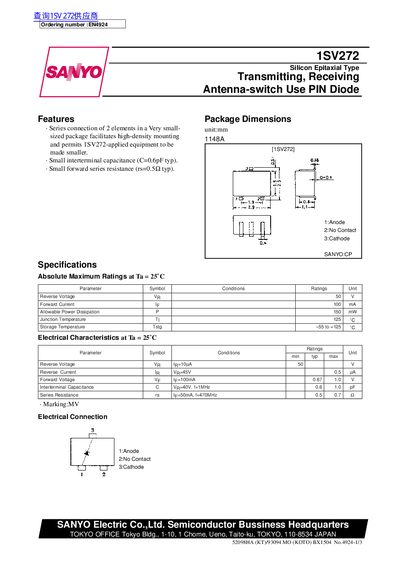

1SV272 is a PIN diode produced by SANYO. It features a very small package that can be used to connect two devices in series, facilitating high-density mounting and allowing 1SV272-applied equipment to be made smaller. It also has a small interterminal capacitance and a small forward series resistance.
The document provides technical specifications for the 1SV272, a very small-sized package containing two elements in series. This design facilitates high-density mounting and allows applied equipment to be made smaller. Key features include small interterminal capacitance (0.6pF typical) and low forward series resistance. This manual is written in Japanese.
| Reverse Voltage (VR) | 50 V |
|---|---|
| Forward Current (IF) | 100 mA |
| Allowable Power Dissipation (P) | 150 mW |
| Junction Temperature | 125 *C |
| Storage Temperature (Tstg) | -55 to +125 *C |
| Interterminal Capacitance (C) | 0.6 pF typ |
| Series Resistance (rs) | 0.5 ohm typ |
The absolute maximum reverse voltage rating is 50 V.
