1SV233 is a PIN diode produced by SANYO. It is suitable for VHF, UHF, AGC and other fields. Its features are small size, easy to install, and make the application equipment smaller. In addition, its internal resistance and parasitic capacitance are also relatively small.

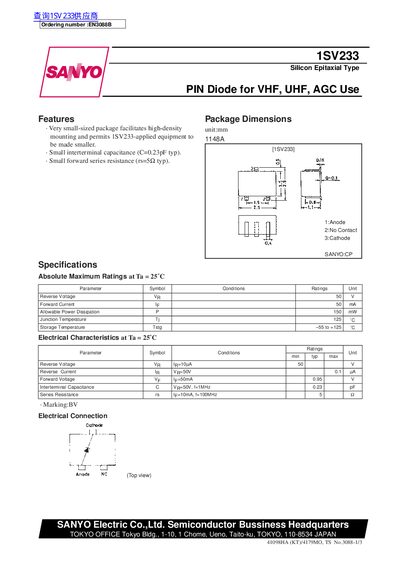

This document is a technical datasheet for the Sanyo 1SV233, a silicon epitaxial type PIN diode designed for VHF, UHF, and AGC use. The device features a very small-sized package to facilitate high-density mounting and includes low interterminal capacitance (0.23pF typical) and series resistance (5Ω typical).
| Reverse Voltage | 50 V |
|---|---|
| Forward Current | 50 mA |
| Allowable Power Dissipation | 150 mW |
| Junction Temperature | 125 °C |
| Storage Temperature | -55 to +125 °C |
| Interterminal Capacitance | 0.23 pF |
| Series Resistance | 5 Ω |
The device is designed as a silicon epitaxial type PIN diode specifically for VHF, UHF, and AGC applications.
The diode can withstand a maximum reverse voltage of 50 V and a maximum forward current of 50 mA.
The specified allowable power dissipation for the device is 150 mW.
