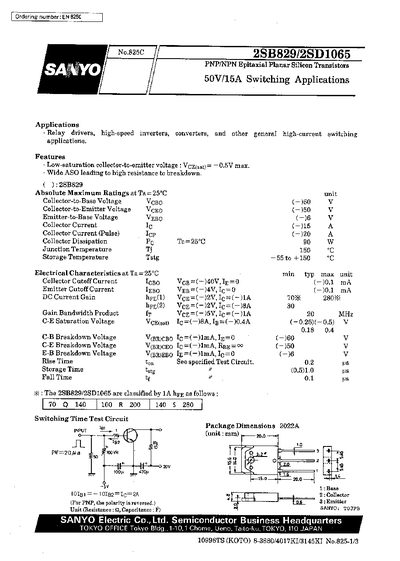

This document is a technical datasheet for the Sanyo 2SB829/2SD1065, which are PNP/NPN epitaxial planar silicon transistors. These components are specifically designed for 50V/15A switching applications such as relay drivers and high-speed inverters.
| Collector Current (Continuous) | -15 A |
|---|---|
| Collector Dissipation | 90 W |
| Junction Temperature | 150 °C |
| Collector-to-Base Voltage | -60 V |
It is designed for relay drivers, high-speed inverters, converters, and other general high-current switching applications.
The absolute maximum collector current is 15 A.
