1SV298 is a 3-terminal PIN diode produced by SANYO. Its rated reverse voltage is 50V, maximum reverse current is 0.1A, and rated forward current is 50mA.

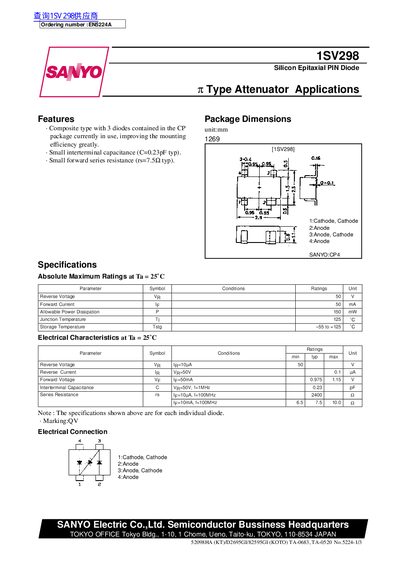

This document describes the SANYO 1SV298, a composite type Silicon Epitaxial PIN Diode designed for use in attenuators. The device features three diodes contained within a single package to improve mounting efficiency and includes small interterminal capacitance (0.23pF typical) and low forward series resistance.
| Reverse Voltage | 50 V |
|---|---|
| Forward Current | 50 mA |
| Allowable Power Dissipation | 150 mW |
| Junction Temperature | 125 C |
| Storage Temperature | -55 to +125 C |
| Interterminal Capacitance | 0.23 pF typ |
| Forward Series Resistance | 7.5 Ohm typ |
The absolute maximum reverse voltage rating is 50 V.
The allowable forward current is rated at 50 mA.
The typical interterminal capacitance is 0.23 pF.
