This is a product design support document that introduces the features and characteristics of the product.

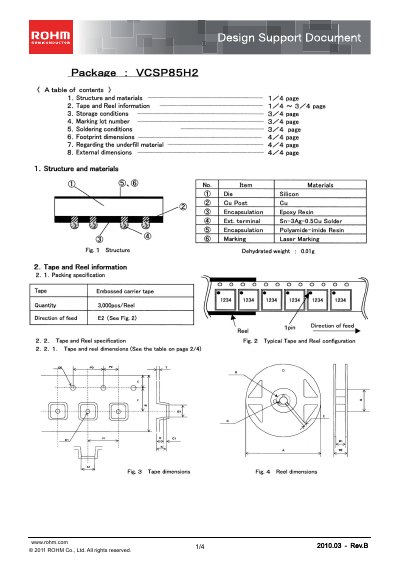

The ROHM VCSP85H2 design support document provides detailed information on the package structure, materials, and recommended handling. It includes tape‑and‑reel packaging specifications, storage conditions, marking details, and soldering profiles.
Additional sections cover footprint dimensions, underfill material considerations, and external dimensions, helping designers integrate the component safely into their products.
| Package type | VCSP85H2 |
|---|---|
| Storage temperature range | 5~30°C |
| Storage humidity range | 40~70% RH |
| Reflow peak temperature (max) | 260°C |
| Soldering temperature range | 220°C~230°C |
| Tape width | 3.01 mm |
| Reel width | 40 mm |
| Quantity per reel | 3,000 pcs |
The recommended storage temperature is 5 °C to 30 °C and humidity is 40 % to 70 % RH.
Each reel contains 3,000 pieces of the VCSP85H2 package.
The tape feed direction is designated as E2.
