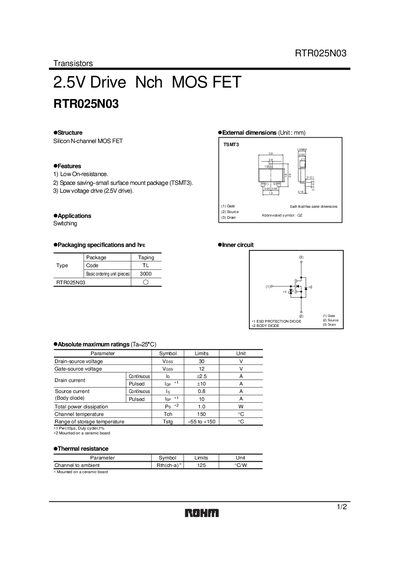

The RTR025N03 is a N-channel MOSFET with a low on-resistance and a space saving-small surface mount package (TSMT3).
The RTRO25N03 is an N‑channel MOSFET offered in a compact TSMT3 surface‑mount package. It features a low on‑resistance, a low‑voltage 2.5 V drive requirement, and a maximum drain‑source voltage of 30 V.
Typical applications include switching circuits in audio‑visual equipment, office‑automation devices, communications gear, and other electronic products. The device is supplied in a tape‑and‑reel format (type code TL) and includes built‑in ESD and body diodes for added protection.
| Drain‑source voltage (VDS) | 30 V |
|---|---|
| Gate‑source voltage (VGS) | 12 V |
| Continuous drain current (ID) | 42.5 A |
| Input capacitance (CISS) | 220 pF |
| Output capacitance (COSS) | 60 pF |
| Drive voltage | 2.5 V |
The device can tolerate up to 30 V between drain and source.
It is designed for low‑voltage drive, operating with a 2.5 V gate drive.
