RRR015P03 is a Pch -30V -1.5A Power MOSFET from ROHM. Its features are low on - resistance, built-in G-S Protection Diode, Small Surface Mount Package (TSMT3), lead-free lead plating, RoHS compliant.
The RRR015P03 is a surface‑mount power MOSFET from ROHM, rated for a maximum drain‑source voltage of about 30 V and a continuous drain current of 1.5 A. It features a built‑in gate‑source protection diode, low on‑resistance, and a compact TSMT3 package.

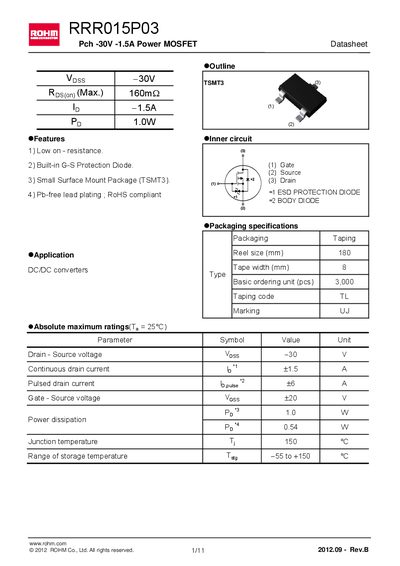

The datasheet lists absolute maximum ratings, detailed electrical characteristics (including gate‑source voltage, power dissipation, and thermal resistance), packaging specifications, and mechanical dimensions. These data help designers select the device for DC‑DC converters, low‑power switching applications, and other electronic circuits.
| Drain‑Source voltage (VDS) | ~30 V |
|---|---|
| Gate‑Source voltage (VGS) | +20 V |
| Junction temperature (Tj) | 150 °C |
| Storage temperature range | -55 °C to +150 °C |
The device is rated for a drain‑source voltage of approximately 30 V.
The gate‑source voltage is specified up to +20 V.
