TIP130/131/132 TIP135/136/137 are silicon epitaxial-base NPN power transistors in monolithic Darlington configuration, mounted in Jedec TO-220 plastic package. They are intented for use in power linear and switching applications. The complementary PNP types are TIP135, TIP136 and TIP137.
The TIP130, TIP131, TIP132 (NPN) and TIP135, TIP136, TIP137 (PNP) are silicon epitaxial‑base Darlington power transistors packaged in a JEDEC TO‑220 plastic case. They are intended for linear and switching power applications.

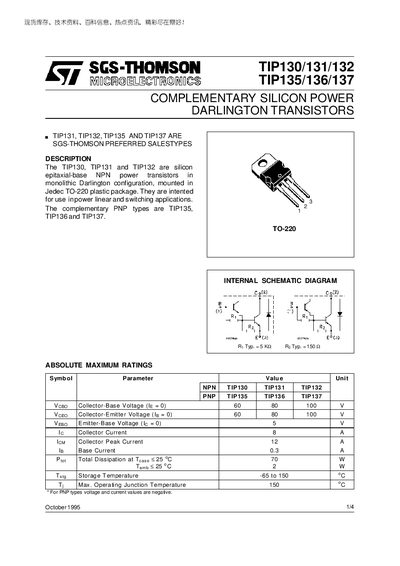

The document lists absolute maximum ratings, thermal resistance values, electrical characteristics such as collector‑emitter voltage and current limits, and detailed mechanical dimensions of the TO‑220 package.
| Collector‑Emitter Voltage (Vceo) | 60 V (TIP130), 80 V (TIP131), 100 V (TIP132) |
|---|---|
| Collector Current (Ic) | 8 A |
| Total Power Dissipation (Ptot) | 70 W at 25 °C case temperature |
| Junction‑to‑Ambient Thermal Resistance (RθJA) | 63.5 °C/W |
| Package Type | JEDEC TO‑220 plastic |
The TIP132 can withstand up to 100 V between collector and emitter.
The devices may be stored from –65 °C up to 150 °C.
