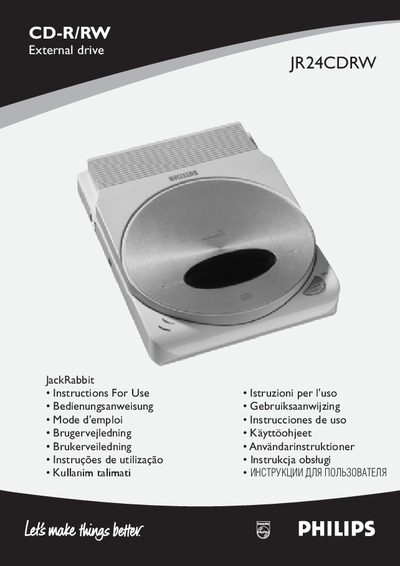

This document provides instructions for using the CD-R/RW external drive JR24CDRW JackRabbit. It includes precautions for inserting and ejecting discs and switching off the power.
This manual explains how to install and operate the Philips JR24CDRW external CD‑R/RW drive. It covers safety warnings, power‑up behavior, transport‑protection removal, and the meaning of the green, blue and red LEDs. The device has no power switch and powers on automatically when both the power adapter and a computer are connected.
Special functions are described, including the emergency eject hole, playback mode (press OPEN for ~2 seconds), immediate recording interruption (press OPEN >4 seconds), the Blue Button that opens a web‑based application window, and USB 2.0 high‑speed operation up to 24×12×40. The guide also details how to safely remove a disc and how to deactivate the drive completely.
| USB Interface | USB 2.0 (Hi‑Speed) up to 24×12×40 |
|---|---|
| Power Switch | None (device powers on automatically) |
The red LED lights when a recording is in progress.
Disconnect the power supply, insert a short slender pin into the hole at the bottom of the drive, and pull the stud forward to release the lid.
