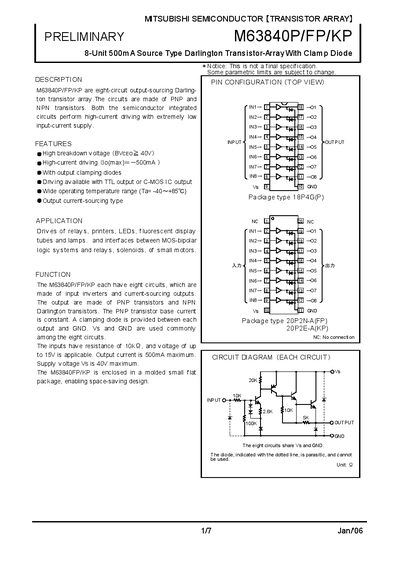

The M63840P/FP/KP is a unit with eight circuits, made of input inverters and current-sourcing outputs. The outputs consist of PNP transistors and NPN Darlington transistors. The inputs have a resistance of 10kΩ and can handle voltages up to 15V. The maximum output current is 500mA. The supply voltage VS is a maximum of 40V. The M63840FP/KP is enclosed in a molded small flat package, allowing for space-saving design. It features output clamping diodes and a wide operating temperature range (Ta=-40～+85℃).
The M63840P/FP/KP is an 8‑circuit Darlington transistor array with built‑in clamping diodes, designed for high‑current sourcing applications such as relays, printers, LEDs, and small motor drivers. Each circuit shares a common supply (Vs) and ground, and the inputs feature 10 kΩ resistance with a 0.5‑15 V operating range.
Key specifications include a maximum output current of 500 mA per circuit, a supply voltage rating of up to 40 V, and an operating temperature range of –40 °C to +85 °C. The device is offered in two plastic packages: an 18‑pin DIP (18P4G) and a 20‑pin SOP (20P2N‑A/20P2E‑A), with detailed mechanical dimensions provided.
| Supply voltage (Vs) maximum | 40 V |
|---|---|
| Clamping diode forward current (IF) | 500 mA |
| Operating temperature range | -40 °C to +85 °C |
| Package type (DIP) | 18P4G (18‑pin DIP) |
| Package type (SOP) | 20P2N‑A / 20P2E‑A (20‑pin SOP) |
The supply voltage (Vs) may be between 0 V and 40 V.
It is rated for operation from –40 °C up to +85 °C.
