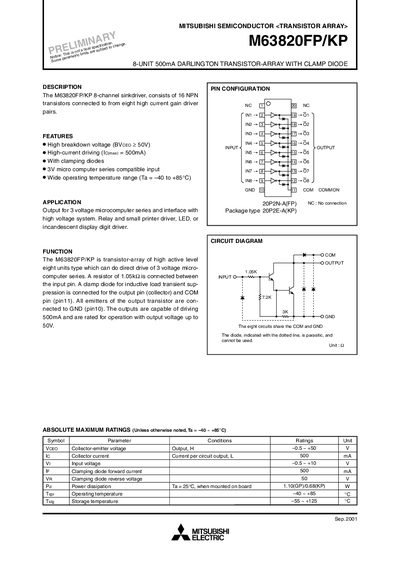

The M63820FP/KP is an 8-channel sink driver consisting of 16 NPN transistors connected to form eight high current gain driver pairs. It features high breakdown voltage, high-current driving, clamping diodes, and compatibility with 3V microcomputer series inputs.
The M63820FP/KP is an 8‑channel sink‑driver transistor array consisting of 16 NPN transistors arranged in eight high‑current driver pairs. It includes built‑in clamping diodes for inductive load protection and is compatible with 3 V micro‑computer series inputs.
Key features include a collector‑emitter breakdown voltage greater than 50 V, per‑channel collector current of 500 mA, operation over –40 °C to +85 °C, and a 20‑pin package (20P2N‑A(FP) / 20P2E‑A(KP)). The device is suited for driving relays, small printers, LEDs, and incandescent display digits.
| Breakdown voltage (VCEo) | > 50 V |
|---|---|
| Collector current per circuit (Ic) | 500 mA |
| Input voltage range (Vi) | -0.5 V to +10 V |
| Clamping diode forward current (IF) | 500 mA |
| Clamping diode reverse voltage (VR) | 50 V |
| Operating temperature range | -40 °C to +85 °C |
| Storage temperature range | -55 °C to +125 °C |
Each channel can handle up to 500 mA of collector current.
The device has a collector‑emitter breakdown voltage greater than 50 V.
It operates from –40 °C to +85 °C.
