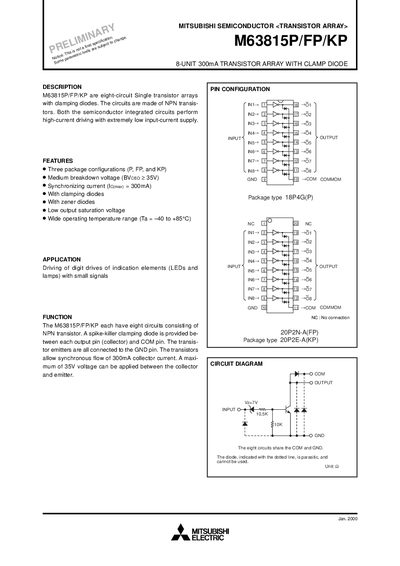

M63815P/FP/KP are eight-circuit Single transistor arrays with clamping diodes. The circuits are made of NPN transis- tors. Both the semiconductor integrated circuits perform high-current driving with extremely low input-current supply.
The M63815P/FP/KP is an eight‑circuit NPN transistor array with integrated clamping and zener diodes. It is offered in three package configurations (P, FP, KP) and is intended for driving LED or lamp indication elements with small signals.
The datasheet provides absolute maximum ratings, recommended operating conditions, electrical and switching characteristics, as well as thermal derating curves. Typical performance graphs illustrate collector‑emitter saturation voltage, turn‑on/off times and duty‑cycle behavior across temperature ranges.
| Package type (P) | 18P4G(P) |
|---|---|
| Package type (KP) | 20P2E-A(KP) |
| Input voltage (VI) | 0.5 ~ 35 V |
| Clamping diode forward current (IF) | 300 mA |
| Clamping diode reverse voltage (VR) | 35 V |
| Operating temperature range | -40 °C ~ +85 °C |
The series is offered in three configurations: P (18‑pin), FP, and KP (20‑pin).
The recommended operating temperature range is –40 °C to +85 °C.
