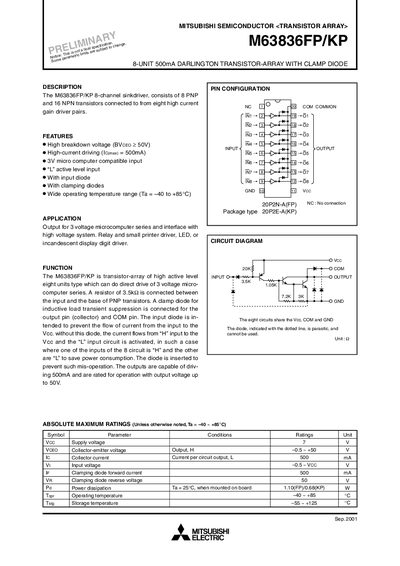

The M63836FP/KP is an 8-channel sinkdriver consisting of 8 PNP and 16 NPN transistors, capable of directly driving 3 voltage micro-computer series. It features high breakdown voltage, high-current driving, 3V microcomputer compatible input, input diode, and clamping diodes.
The M63836FP/KP is an 8‑channel Darlington transistor array that combines eight PNP and sixteen NPN transistors into high‑current driver pairs. It includes input and clamping diodes for protection and is compatible with 3 V micro‑computer logic levels.
Key specifications include a breakdown voltage greater than 50 V, a maximum collector current of 500 mA per channel, a supply voltage range of 3.0 V to 3.6 V, and an operating temperature range from –40 °C to +85 °C. The device is intended for driving relays, small printers, LEDs, and other low‑voltage loads in micro‑computer applications.
| Breakdown voltage | > 50 V |
|---|---|
| Maximum collector current per circuit | 500 mA |
| Operating temperature range | –40 °C to +85 °C |
| Clamping diode forward current | 500 mA |
Each channel can handle up to 500 mA of collector current.
It can operate from –40 °C up to +85 °C.
The clamping diode is rated for a forward current of 500 mA.
