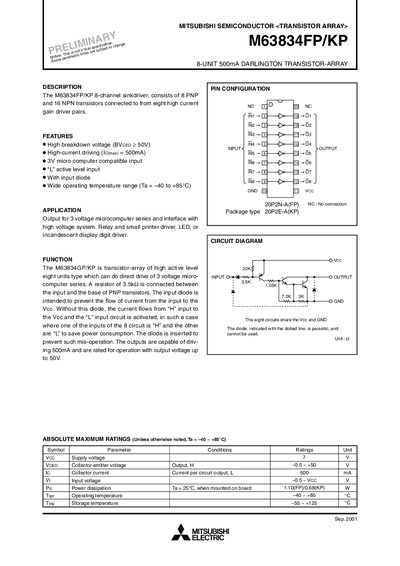

M63834FP/KP is a 8-channel NPN and PNP high current gain driver array with input diode.
The M63834FP/KP is an 8‑channel sink‑driver transistor array comprising eight PNP and sixteen NPN transistors that can directly drive 3‑V micro‑computer series, relays, small printers, LEDs and incandescent displays. It features a high breakdown voltage, high‑current capability, and active‑level inputs with built‑in diodes for protection.
Key specifications include a collector‑emitter breakdown voltage greater than 50 V, a maximum per‑channel collector current of 500 mA, supply voltage range 3.0‑3.6 V, and an operating temperature range from –40 °C to +85 °C. Electrical characteristics such as VCE(sat) and input voltage thresholds are provided for typical operating conditions.
| Breakdown voltage (VCEO) | > 50 V |
|---|---|
| Maximum collector current per output | 500 mA |
| Operating temperature range | ‑40 °C to +85 °C |
| High‑level input voltage (VIH) | Vec‑0.5 V to Vec |
Each output channel can handle up to 500 mA of collector current.
It operates from –40 °C up to +85 °C.
