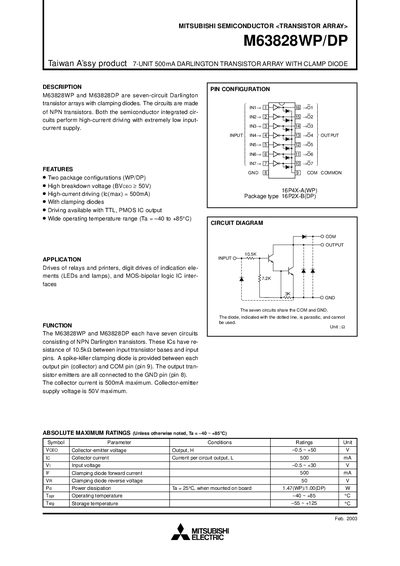

M63828WP/DP are 7-unit 500mA Darlington transistor arrays with clamp diodes. The circuits are made of NPN transistors. Both the semiconductor integrated circuits perform high-current driving with extremely low input-current supply.
The M63828WP/DP is a seven‑circuit Darlington transistor array built from NPN transistors. It provides high‑current driving up to 500 mA per circuit and includes integrated clamping diodes. The device operates over a wide temperature range (‑40 °C to +85 °C) and is suitable for driving relays, printers, LEDs, lamps and MOS‑bipolar logic interfaces.
Electrical specifications include a collector‑emitter breakdown voltage of up to 50 V, input voltage range of 0.5 V to 30 V, and power dissipation of 1.47 W (WP) or 1.00 W (DP). Two package options are offered: 16P4X‑A (WP) and 16P2X‑B (DP), both 16‑pin plastic molded packages with detailed mechanical dimensions provided.
| Input voltage range (VI) | 0.5 V – 30 V |
|---|---|
| Clamping diode forward current (IF) | 500 mA |
| Operating temperature range | ‑40 °C to +85 °C |
| Package type | 16P4X‑A (WP) and 16P2X‑B (DP) 16‑pin plastic molded packages |
