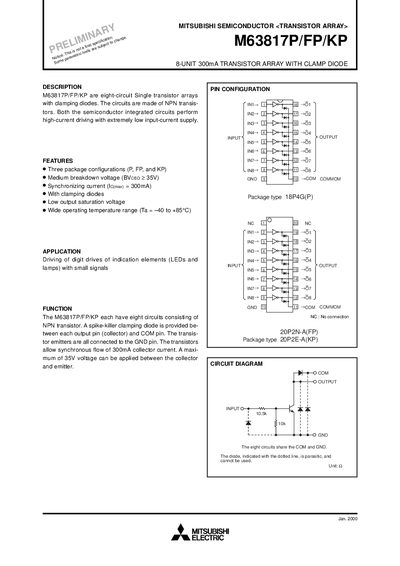

M63817P/FP/KP is a 8-channel 300mA single transistor array with clamping diode.
The Mitsubishi M63817P/FP/KP is an eight‑circuit NPN transistor array that includes built‑in clamping diodes on each output. Three package configurations are offered (P, FP, KP) and the device can handle up to 300 mA collector current per circuit with a maximum collector‑emitter voltage of 35 V.
The datasheet provides absolute maximum ratings, electrical characteristics, recommended operating conditions, switching times, thermal derating curves, and output saturation voltage data. Typical operating temperature ranges from –40 °C to +85 °C, and power dissipation varies by package (up to 1.79 W).
| Package type | 18P4G(P) |
|---|---|
| Input voltage (VI) | 0.5 ~ +35 V |
| Clamping diode forward current (IF) | 300 mA |
| Clamping diode reverse voltage (VR) | 35 V |
| Operating temperature range | -40 °C ~ +85 °C |
The device operates from –40 °C to +85 °C.
Three package configurations are offered: P, FP, and KP.
