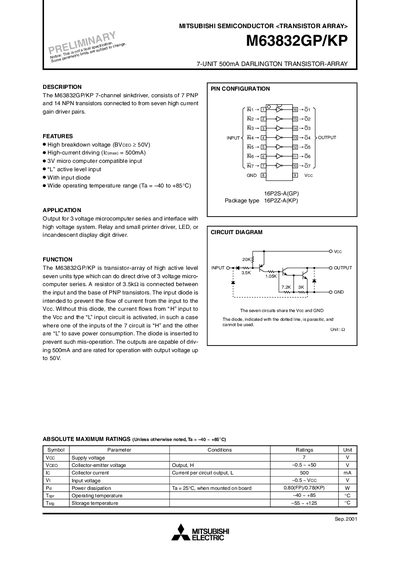

The M63832GP/KP 7-channel sinkdriver, consists of 7 PNP and 14 NPN transistors connected to from seven high current gain driver pairs.
The M63832GP/KP is a 7‑channel sink‑driver transistor array comprising seven PNP and fourteen NPN transistors. It is designed for direct drive of 3‑V micro‑computer series, relay and small printer drivers, LEDs, and incandescent display digit drivers.
Key specifications include a collector‑emitter breakdown voltage over 50 V, a maximum per‑circuit current of 500 mA, supply voltage operation from 3.0 V to 3.6 V, and an operating temperature range of –40 °C to +85 °C. The device features an input diode for protection and a low‑level active input.
| Breakdown voltage (BVCEO) | > 50 V |
|---|---|
| Maximum collector current per circuit | 500 mA |
| Supply voltage (VCC) range | 3.0 V – 3.6 V |
| Operating temperature range | –40 °C to +85 °C |
| Power dissipation (GP) | 0.80 W |
| Collector‑emitter voltage (VCEO) | –0.5 V to +50 V |
Each circuit can handle up to 500 mA of collector current.
The recommended supply voltage is between 3.0 V and 3.6 V.
It operates from –40 °C up to +85 °C.
The breakdown voltage is greater than 50 V.
