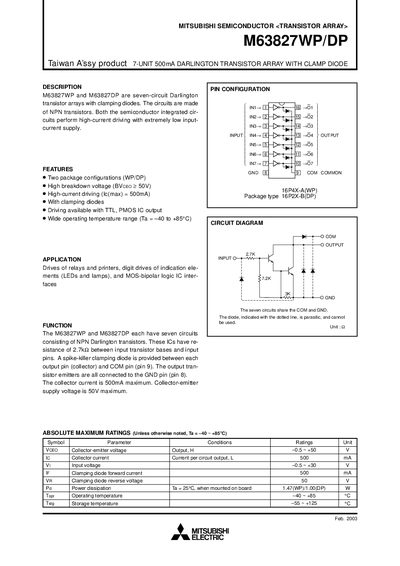

M63827WP/DP is a 7-circuit Darlington transistor array with clamping diode, which contains NPN transistors. The semiconductor integrated circuits perform high-current driving with extremely low input-current supply.
The M63827WP/DP is a 7‑circuit Darlington transistor array with integrated clamping diodes, intended for driving relays, printers, LEDs and MOS‑bipolar logic interfaces. Each circuit uses NPN transistors and shares common ground and COM pins.
Key specifications include a maximum collector‑emitter voltage of 50 V, 500 mA per‑circuit collector current, wide operating temperature range from –40 °C to +85 °C, and two package options (16P4X‑A for WP and 16P2X‑B for DP). Electrical characteristics such as input voltage range, turn‑on/off times, and power dissipation are also provided.
| Input voltage range (VI) | 0.5 – 30 V |
|---|---|
| Clamping diode forward current (IF) | 500 mA |
| Operating temperature range | -40 °C to +85 °C |
| Package type (DP) | 16P2X‑B 16‑pin SOP |
| Turn‑on time | 20 ns |
| Turn‑off time | 400 ns |
It operates from –40 °C up to +85 °C.
