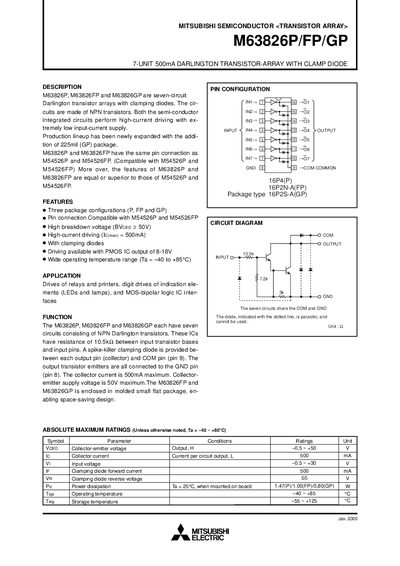

M63826P/FP/GP is a 7-unit, 500mA, clamping diode Darlington transistor array. The devices are made of NPN transistors and can provide high current drive with extremely low input current supply. In addition, this series of devices has been expanded with the addition of a 225mil (GP) package. M63826P and M63826FP have the same pin connection as M54526P and M54526FP (compatible with M54526P and M54526FP). In addition, the functions of M63826P and M63826FP are the same as or higher than those of M54526P and M54526FP.
The M63826P/FP/GP series are seven‑circuit Darlington transistor arrays with integrated clamping diodes. They use NPN transistors, provide up to 500 mA per circuit, and are compatible with the pinout of M54526P/FP. The devices are offered in three package types (P, FP, GP) and are suited for driving relays, printers, LEDs, and MOS‑bipolar logic interfaces.
Electrical specifications include a collector‑emitter breakdown voltage of up to 50 V, a maximum collector current of 500 mA per circuit, and operation over a temperature range of –40 °C to +85 °C. Recommended operating conditions, switching characteristics, and thermal derating curves are provided for design reference.
| Collector‑emitter voltage (VCEO) | 0.5 ~ +50 V |
|---|---|
| Collector current per circuit (Ic) | 500 mA |
| Input voltage (VI) | –0.5 ~ +30 V |
| Clamping diode forward current (IF) | 500 mA |
| Clamping diode reverse voltage (va) | 50 V |
| Operating temperature range | –40 °C to +85 °C |
| Storage temperature range | –55 °C to +125 °C |
It operates from –40 °C up to +85 °C.
Yes, the pin connections are compatible with M54526P and M54526FP.
