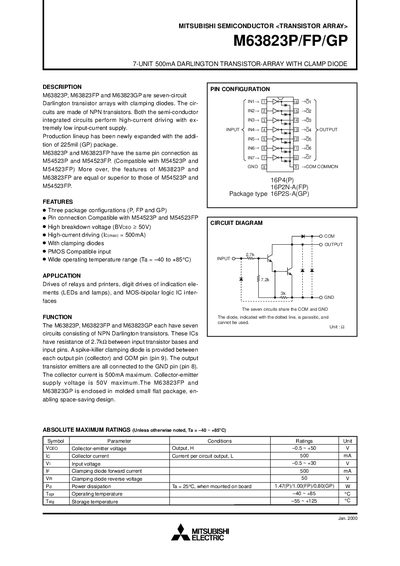

M63823P, M63823FP, and M63823GP are seven-channel Darlington transistor arrays with clamping diodes. The circuits are made of NPN transistors. These semiconductor integrated circuits have extremely low input current supply and high current driving capabilities. The production lineup has been expanded with the addition of the 225mil (GP) package. M63823P and M63823FP have the same pin connection as M54523P and M54523FP. The features of M63823P and M63823FP are equal or superior to those of M54523P and M54523FP.
The Mitsubishi M63823 series provides a 7‑unit Darlington transistor array with integrated clamping diodes. Each unit delivers up to 500 mA of collector current and can handle a collector‑emitter voltage of up to 50 V. The series is offered in three package types (P, FP, GP) and features a PMOS‑compatible input.
The device operates over a wide temperature range (‑40 °C to +85 °C) and includes absolute maximum ratings, recommended operating conditions, and detailed electrical and switching characteristics. Pin connections are compatible with Mitsubishi M54523P and M54523FP parts, facilitating easy substitution in existing designs.
| Package configurations | P, FP, GP |
|---|---|
| Pin compatibility | Compatible with M54523P and M54523FP |
| Breakdown voltage (BVceo) | 50 V |
| Maximum collector current per circuit (Ic max) | 500 mA |
| Clamping diode presence | Included |
| Input type | PMOS compatible |
| Operating temperature range | ‑40 °C to +85 °C |
| Input voltage range (VI) | ‑0.5 V to +30 V |
| Storage temperature (Tsig) | ‑55 °C to +125 °C |
The series is offered in three packages: P, FP, and GP.
Yes, the pin connections are compatible with Mitsubishi M54523P and M54523FP.
