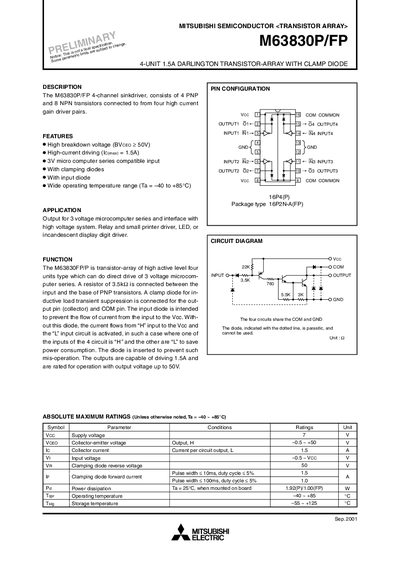

m63830p/fp is a 4-channel sinkdriver produced by mitsubishi, which has high breakdown voltage, high current driving, 3v microcomputer series compatible input, clamping diodes, input diodes and wide operating temperature range.
The M63830P/FP is a 4‑unit Darlington transistor array designed for high‑current driving of 3‑V micro‑computer series and other low‑voltage logic. It includes built‑in clamp and input diodes to protect against inductive load transients and reverse current flow.
Key features include a high breakdown voltage (>50 V), 1.5 A continuous output current per channel, a wide operating temperature range (‑40 °C to +85 °C), and a supply voltage of 4 V. Detailed electrical characteristics, absolute maximum ratings, and switching performance are provided for designers.
| Breakdown voltage | > 50 V |
|---|---|
| Output current per channel | 1.5 A |
| Supply voltage | 4 V |
| Operating temperature range | ‑40 °C to +85 °C |
| Clamping diode reverse voltage | 50 V |
Each output can handle up to 1.5 A of collector current.
The device is specified for a supply voltage of 4 V.
It operates from –40 °C up to +85 °C.
The input diode prevents current from flowing from the input to the Vcc line.
