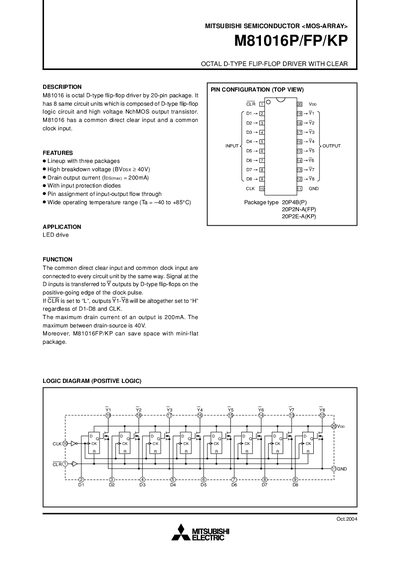

M81016 is an 8-channel D-type flip-flop driver with a breakdown voltage of up to 40V and a drain output current of 200mA. It has a common direct clear input and a common clock input, and 8 identical circuit units are composed of D-type flip-flop logic circuits and high voltage NchMOS output transistors. It is used for LED drive.
The M81016P/FP/KP is an octal D‑type flip‑flop driver offered in three 20‑pin packages (SDIP, SOP, SSOP). Each channel includes a D‑type flip‑flop, a clear input, a common clock input, and a high‑voltage N‑channel MOS output transistor, making it suitable for LED drive and other logic applications.
The document provides full pin‑out diagrams, functional tables, timing diagrams, absolute maximum ratings, recommended operating conditions, and detailed electrical and switching characteristics. Package dimensions and recommended mount pad layouts are also listed for PCB design.
| Drain-to-source voltage (VDS) max | 40 V |
|---|---|
| Operating temperature range | -40 to +85 °C |
| Power dissipation (FP package) | 1.10 W |
It operates from –40 °C up to +85 °C.
