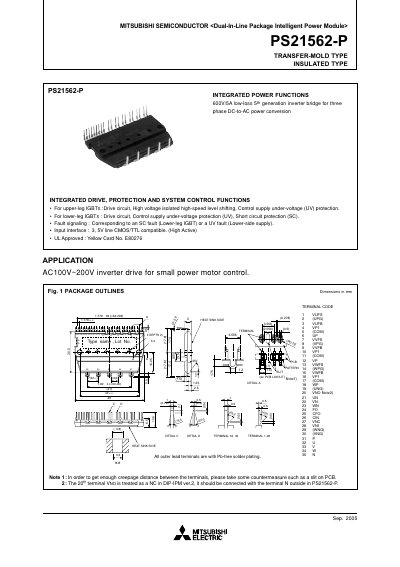

Mitsubishi PS21562-P Intelligent Power Module User Manual

About this manual

The PS21562-P is a Dual‑In‑Line Package (DIP) Intelligent Power Module that integrates drive, protection, and system‑control functions for three‑phase DC‑to‑AC conversion. It supports 600 V/5 A operation and a 3 V/5 V CMOS/TTL compatible input interface, and is UL approved (Yellow Card No. E80276).\n\nThe document describes the internal block diagram, external protection circuit, recommended RC time constant (1.5‑2.0 µs), wiring guidelines, mechanical characteristics, and timing charts for short‑circuit and under‑voltage protection. It also provides recommended mounting torque (0.78 N·m) and thermal limits (maximum junction temperature 150 °C).

What's inside

• Integrated Power Functions
• External Protection Circuit
• Internal Circuit Diagram
• Mechanical Characteristics
• Electrical Characteristics
• Recommended Operation Conditions
• Timing Chart of Protective Functions
• Wiring Connection Guidelines
• Typical Application Circuit Example

Specifications

Frequently asked questions

What is the input voltage range for the PS21562-P?

The module accepts a 3 V or 5 V line that is CMOS/TTL compatible.

What RC time constant should be used for the external protection circuit?

The recommended RC time constant is between 1.5 µs and 2.0 µs.

What is the UL approval number for this module?

The module is UL approved with Yellow Card No. E80276.
