This document is an introduction to the G3VM-41LR5 MOS FET. The product is a surface mount type with a working voltage of 40V and features low current leakage and high-speed switching. The product also complies with RoHS standards.

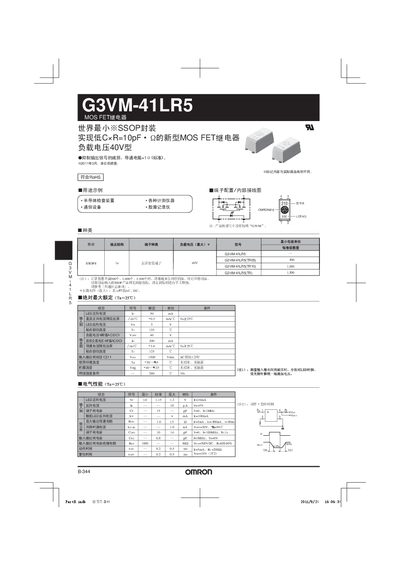

This manual describes the Omron G3VM-41LR5 MOS FET relay, the world’s smallest SSOP‑package relay, and lists its electrical characteristics such as load voltage, on‑resistance, and LED parameters. It also includes internal wiring diagrams and recommended usage examples for various measurement instruments and communication devices.
The document outlines recommended operating conditions, including load voltage limits, LED forward current, continuous load current, and ambient temperature range, as well as common precautions for handling and mounting the component. This manual is written in Chinese.
| Maximum load voltage | 40 V |
|---|---|
| On‑state resistance | 19 Ω (standard) |
| LED forward current | 50 mA |
| LED reverse voltage | 5 V |
| Operating temperature range | -20 °C to +85 °C |
The relay is rated for a maximum load voltage of 40 V.
The on‑state resistance is specified as 19 Ω (standard).
The LED forward current is specified as 50 mA.
The relay can operate in ambient temperatures from –20 °C to +85 °C.
