G3VM-41LR4 MOS FET relay, a new MOS FET relay that achieves low C×R=10pF·Ω, load voltage 40V type, and a 2Ω (standard) conduction resistance that suppresses output signal attenuation.

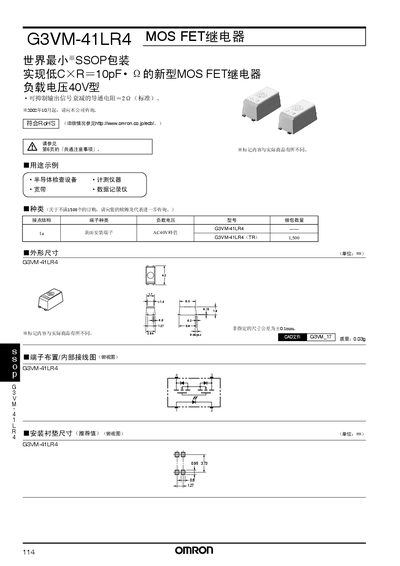

The G3VM-41LR4 is a miniature MOS FET relay in an SSOP package, offering low on‑resistance and a maximum load voltage of 40 V AC peak. It is designed for semiconductor inspection equipment, data recorders, and similar applications, with a surface‑mount terminal type.
Key electrical parameters include a continuous load current of 250 mA, a trigger LED forward current of 4 mA, and an operating temperature range of –20 °C to 85 °C. The document also lists absolute maximum ratings, recommended operating conditions, and common precautions for reliable operation. This manual is written in Chinese.
| Continuous Load Current | 250 mA |
|---|---|
| Maximum On‑Resistance (R_on) | 2.3 Ω |
It is rated for a continuous load current of 250 mA.
