G3VM-62C1/F1 MOS FET is a high voltage bidirectional controllable silicon rectifier, which has the characteristics of high voltage, large working current, high working frequency, and can be widely used in various AC/DC power supplies and LED driver power supplies.

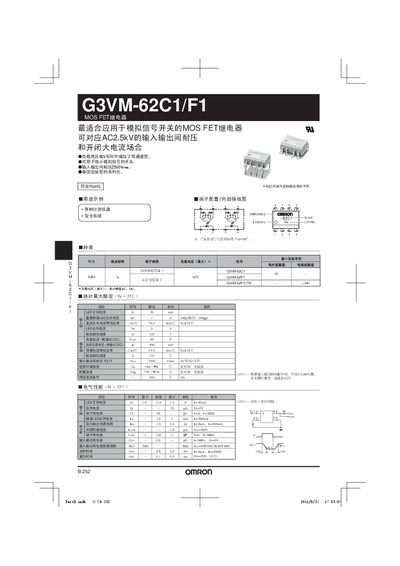

This manual describes the Omron G3VM-62C1/F1 MOS FET relay, a solid‑state relay suited for switching small analog signals and handling high voltage isolation up to 2.5 kV. It includes pin markings, terminal configurations, and typical application examples.
The document lists electrical ratings such as peak load voltage, continuous load current, LED drive requirements, and the temperature range for reliable operation, along with recommended action and reset conditions. This manual is written in Chinese.
| Peak load voltage (AC/DC) | 48 V |
|---|---|
| Continuous load current (peak AC/DC) | 500 mA |
| Operating temperature range | -20 °C to 65 °C |
The relay’s peak load voltage (AC/DC) is specified as 48 V.
The recommended continuous load current (peak AC/DC) is 500 mA.
The relay is rated for operation between –20 °C and 65 °C.
