G3VM-41GR5 is a MOSFET produced by OMRON. It has a VOFF of 40V and a Ciss of 10pF. It can be used for LED driving applications.
The G3VM-41GR5 is a MOS FET relay with a maximum load voltage of 40 V and a low on‑resistance of 19 mΩ. It features a leakage current of only 1.0 nA when the contacts are open and includes an indicator LED with defined forward current and voltage.

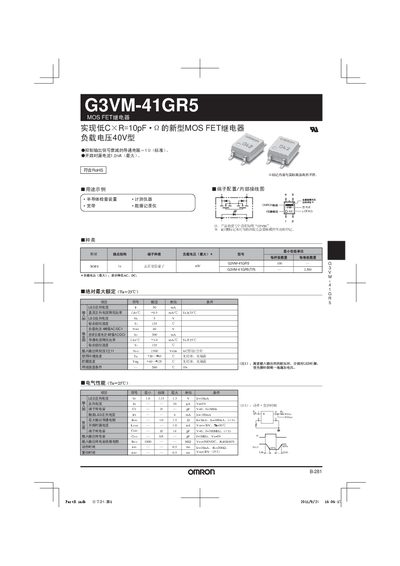

The manual provides electrical parameters, recommended operating conditions, pin configuration, and timing specifications such as actuation and release times. Proper installation and environmental limits are also described to ensure reliable performance. This manual is written in Chinese.
| Maximum Load Voltage | 40 V |
|---|---|
| On‑Resistance (Rds_on) | 19 mΩ |
| Off‑State Leakage Current | 1.0 nA (max) |
| LED Forward Current | 50 mA |
| LED Forward Voltage | 1.15 V |
The relay is rated for a maximum load voltage of 40 V.
When the contacts are open, the leakage current is 1.0 nA (maximum).
