This document is the PDF datasheet of D/1A16ıMV3G 1, which mainly introduces the characteristics and parameters of the product.

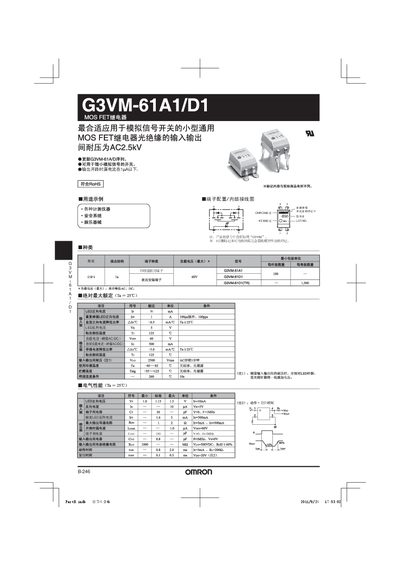

The Omron G3VM-61A1/D1 is a compact MOS FET relay designed for switching small analog signals with optical isolation between input and output.
The datasheet lists key electrical characteristics such as a 2.5 kV AC isolation voltage, leakage current below 1 µA, LED forward current up to 50 mA, and an operating temperature range from –55 °C to +125 °C. This manual is written in Chinese.
| Isolation voltage (input‑output) | 2.5 kV AC |
|---|---|
| Leakage current (output open) | < 1 µA |
| LED forward current (max) | 50 mA |
It can withstand up to 2.5 kV AC between input and output.
The leakage current is less than 1 µA.
The LED forward current can be up to 50 mA.
