G3VM-41LR6 is a MOS FET relay from OMRON. It has a load voltage of 40V, an SSOP package, and an output terminal capacitance of 1pF. It is specially designed for high-frequency applications.

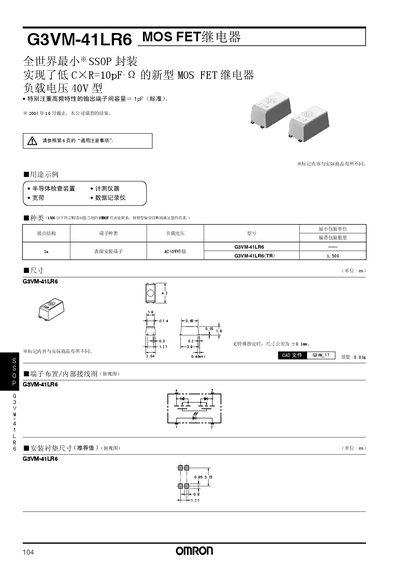

This manual provides the electrical characteristics, mechanical dimensions and recommended operating conditions for the Omron G3VM-41LR6 MOS FET relay. It includes data on load voltage, current ratings, isolation voltage and temperature limits, as well as guidance for proper installation and use.
The document also contains tables of LED parameters, terminal capacitances, actuation and release times, and notes on general precautions to ensure reliable performance in applications such as semiconductor inspection devices, measurement instruments and data recorders. This manual is written in Chinese.
| LED forward current (IF) | 50 mA |
|---|---|
| Repetitive peak forward current (IF) | 1 A (100 µs pulse, 100 pps) |
| Continuous load current (To) | 120 mA |
| Maximum load voltage (VoFF) | 40 V |
| Input‑output isolation voltage | 1500 Vrms (1 min) |
| Operating temperature range (Ta) | -20 °C to +85 °C |
| Terminal capacitance (Cr) | 15 pF @ 1 MHz |
| Maximum on‑resistance (Rom) | 10 Ω |
The relay can handle a load voltage up to 40 V.
It is rated for a continuous load current of 120 mA.
The recommended operating temperature is from –20 °C to +85 °C.
The isolation voltage is specified as 1500 Vrms for up to one minute.
