The G3VM-41GR4 is a 40V, 250mA MOSFET switch with a Ciss of 10pF, Ron of 2.0-3.0Ω, and Io of 250mA. It features low conduction loss and high switching speed, making it suitable for high-frequency switching circuits. It can be used in LED drivers, motor control, and other applications.

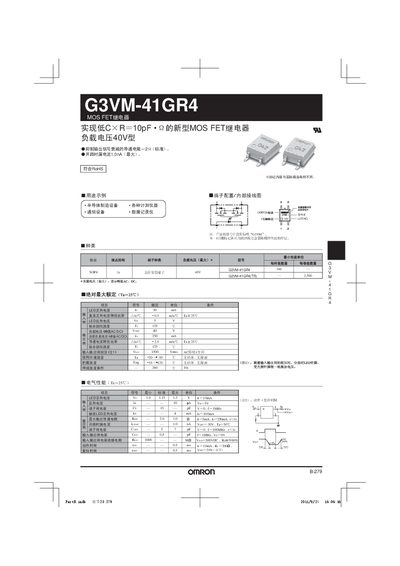

This manual describes the Omron G3VM-41GR4 MOS FET relay, a low‑capacitance relay designed for loads up to 40 V. It includes pin markings, internal wiring diagrams, and typical application examples.
Technical data such as LED forward current, on‑resistance, leak current, and environmental limits are listed, together with recommended actuation conditions and safety precautions for reliable operation. This manual is written in Chinese.
| Maximum Load Voltage | 40 V |
|---|---|
| On‑Resistance | 20 Ω (standard) |
| Off‑State Leak Current | 1.0 nA max |
| LED Forward Current (typical) | 50 mA |
| LED Forward Voltage | 1.15‑1.3 V |
| Actuation LED Forward Current | 10‑30 mA |
| Continuous Load Current (peak) | 250 mA |
| Operating Temperature Range | -20 °C to +65 °C |
The relay is rated for a maximum load voltage of 40 V.
The off‑state leak current is specified as 1.0 nA maximum.
The relay can be used in environments from –20 °C to +65 °C.
The continuous load current (peak) is rated at 250 mA.
