G3VM-61BR/ER is a 2.5A MOSFET relay with 0.1Ω on-resistance and 2500mA continuous current rating.

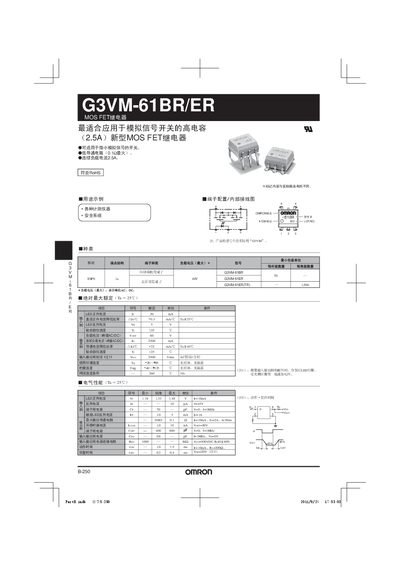

The document describes the Omron G3VM-61BR/ER MOS FET relay, a compact solid‑state relay designed for switching small analog signals. It includes application examples, terminal configurations, and internal wiring diagrams.
Key electrical characteristics such as continuous load current, on‑resistance, peak load voltage, and LED indicator parameters are listed together with recommended operating temperature ranges and environmental limits. This manual is written in Chinese.
| Continuous load current | 2.5 A |
|---|---|
| On‑resistance (max) | 0.19 Ω |
| Peak load voltage (AC/DC) | 48 V |
| LED forward current (typical) | 20 mA |
| Operating temperature range | -20 °C to +85 °C |
The relay can handle a continuous load current of up to 2.5 A.
The relay is rated for operation from –20 °C to +85 °C.
The on‑resistance is specified as a maximum of 0.19 Ω.
The relay can tolerate a peak load voltage of 48 V (AC or DC).
