G3VM-41HR is a 40V, 2.5A MOS FET relay produced by OMRON. Its features are small size and fast response. It is suitable for AC/DC circuits.

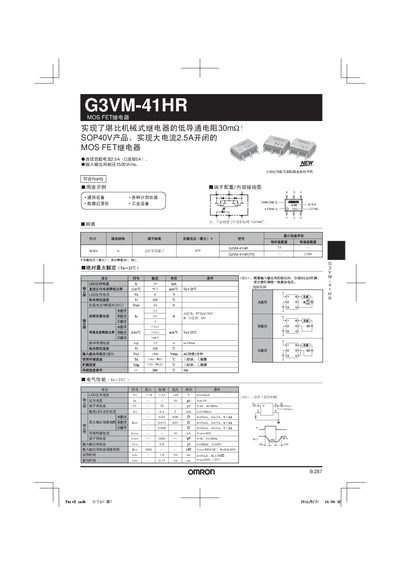

This manual describes the Omron G3VM-41HR MOS FET relay, a solid‑state relay with low on‑state resistance and high switching speed. It includes the device’s electrical characteristics, terminal layout, and wiring instructions.
The document also lists recommended operating conditions such as load voltage, LED drive current, and temperature limits, helping users ensure reliable performance in communication equipment, measurement instruments, and industrial devices. This manual is written in Chinese.
| On‑state resistance | 30 mΩ |
|---|---|
| Continuous load current | 2.5 A |
| Isolation voltage (input‑output) | 1500 Vrms |
| Operating temperature range | -55 °C to +125 °C |
The relay can carry a continuous load current of up to 2.5 A.
The isolation voltage between input and output is rated at 1500 Vrms.
The on‑state resistance is specified as 30 mΩ.
