This document describes the features and characteristics of the G3VM-41LR10 MOS FET product. The product has low capacitance and low resistance, with a operating voltage of 40V, suitable for AC/DC applications. Additionally, the product is compliant with RoHS standards.

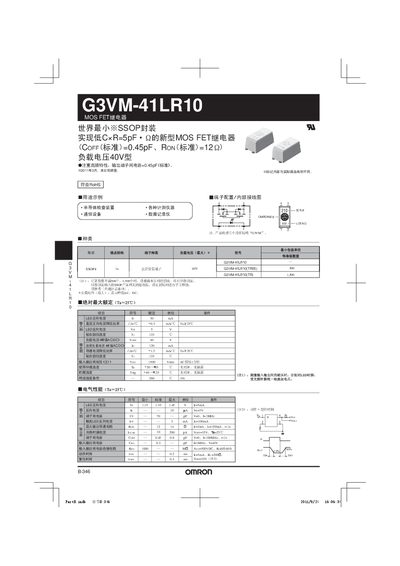

The G3VM-41LR10 is a MOS‑FET relay offered in the world’s smallest SSOP package, designed for low inter‑terminal capacitance (0.45 pF) and high‑frequency performance. It is intended for use with load voltages up to 40 V and includes LED indicators for operation.
The document lists key electrical parameters such as a forward LED current of 20 mA, a continuous load current of 120 mA, and a maximum inter‑terminal voltage rating of 1500 Vrms. Recommended operating conditions and handling notes are also provided to ensure reliable switching and reset behavior. This manual is written in Chinese.
| Maximum load voltage | 40 V |
|---|---|
| Inter‑terminal capacitance | 0.45 pF |
| Forward LED voltage | 1.15 V – 1.45 V |
The relay can handle a maximum load voltage of 40 V.
The typical inter‑terminal capacitance is 0.45 pF.
