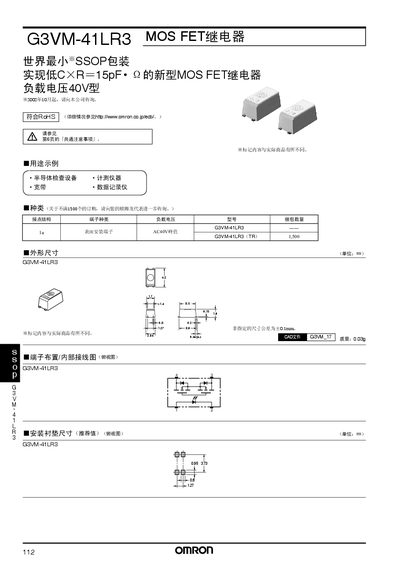

This document describes the features and characteristics of the G3VM-41LR3 MOS FET relay, including its world's smallest SSOP package and the low C×R＝15pF·Ω implementation. The relay is suitable for applications such as semiconductor inspection equipment, broadband, measuring instruments, and data loggers.
This datasheet provides technical information for the Omron G3VM-41LR3 MOSFET relay, including its electrical characteristics, mechanical dimensions, and recommended usage. It contains tables of maximum ratings, performance parameters, and environmental limits.
The document also offers application examples, terminal layout details, mounting dimensions, and operating condition guidelines to help designers integrate the relay into their circuits safely and effectively. This manual is written in Japanese.
| Rated Voltage | AC 40 V |
|---|---|
| LED Forward Voltage (typ.) | 1.15 V |
| LED Reverse Voltage | 5 V |
| Maximum Operating Temperature | 125 °C |
| Maximum Peak Voltage (Vpp) | 32 V |
| Terminal Capacitance | 0.6 pF – 1.4 pF |
The relay is rated for use from –20 °C to 85 °C.
The LED reverse voltage rating is 5 V.
