G3VM-41GR3 is a new generation of MOS FET relays from Panasonic. It has a load voltage of 40V. The output terminal capacitance is 0.6pF (standard) and the leakage current is 1.0nA (maximum) when the circuit is open.

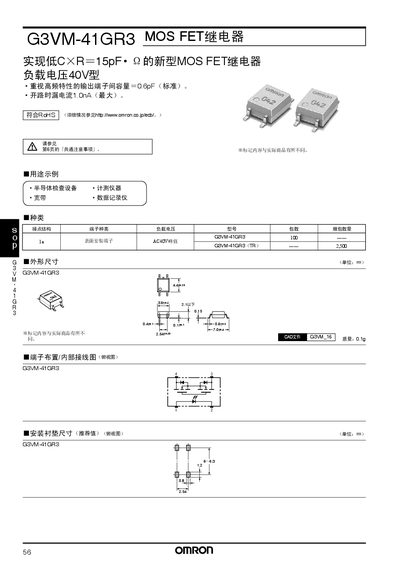

This manual describes the Omron G3VM-41GR3 MOS FET relay, a low‑capacitance relay designed for high‑frequency applications. It includes application examples such as semiconductor inspection equipment, measurement instruments, broadband devices, and data recorders.
The document lists absolute maximum ratings, electrical characteristics, terminal layout, and recommended operating conditions. It also provides guidance on proper usage, environmental limits, and safety precautions. This manual is written in Chinese.
| Load voltage | 40 V |
|---|---|
| Open‑circuit leakage current | 1.0 nA (max) |
| LED forward current | 50 mA |
| Continuous load current | 80 mA |
| On‑state resistance (R_on) | 25 – 35 mΩ |
The relay is rated for a load voltage of 40 V.
The open‑circuit leakage current is limited to 1.0 nA.
