Key facts
- Brand
- Samsung
- Model
- 2243LNX
- Documents
- 2
- Languages
- EN · ZH
- Last added
- 2012-03-21
Start here

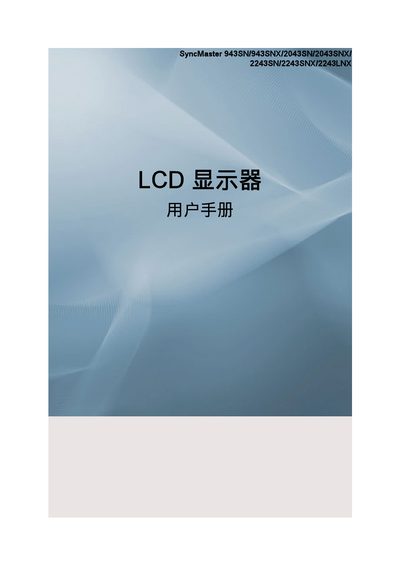

samsung SyncMaster 943SN/943SNX/2043SN/2043SNX/ 2243SN/2243SNX/2243LNX LCD display user manual
This manual provides step‑by‑step instructions for installing and using the Samsung SyncMaster 943SN series LCD monitors. It includes safety precautions, connection diagrams, and adjustment settings to help you get the best picture quality.
Additional sections cover troubleshooting tips, technical specifications, and regulatory information such as Energy Star certification and VESA compliance. Contact details for Samsung service centers in various regions are also provided.
Samsung 2243LNX specifications
| Display size | 21.6 inches (54 cm) |
|---|---|
| Native resolution | 1680 × 1050 @ 60 Hz |
| Refresh rate | 56 ~ 75 Hz |
| Input signal | Analog RGB 0.7 Vp‑p ±5 % |
| Power supply | AC 100‑240 V, 50/60 Hz |
| Maximum pixel clock | 146 MHz |
| VESA mount | 100 × 100 mm |
Source: Samsung SyncMaster 2243LN/2243LNX Monitor User Manual
All Samsung 2243LNX documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Is the SyncMaster monitor Energy Star certified?
Yes, the monitor is Energy Star certified as indicated in the regulatory section of the manual.
From: samsung SyncMaster 943SN/943SNX/2043SN/2043SNX/ 2243SN/2243SNX/2243LNX LCD display user manual
How do I adjust the monitor's brightness?
Press the brightness button; when the OSD menu is not displayed, the button changes the screen brightness.
