Key facts
- Brand
- Panasonic
- Model
- WJ-SX550A
- Category
- Monitoring Equipment
- Industry
- Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-08-08
Start here

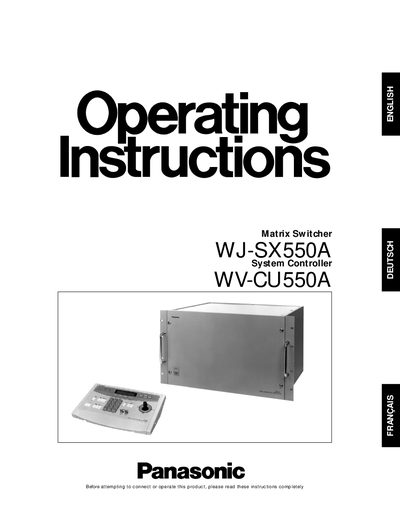

Panasonic WJ-SX550A Matrix Switcher User Manual
User Manual 134 pages · 3.1 MB · EN
The document serves as a comprehensive user guide for the Panasonic WJ-SX550A Matrix Switcher, which is designed to control up to 128 cameras and 16 monitors. It details features such as crosspoint switching, spot and sequence modes, programmable tours, and alarm activations.
Read onlinePanasonic WJ-SX550A specifications
| Max Cameras | 128 cameras |
|---|---|
| Max Monitors | 16 monitors |
| Operating Temperature | -10°C - +50°C (14°F - 122°F) |
| Relative Humidity | below 90% |
| Input Power Source | 120V AC 60 Hz |
All Panasonic WJ-SX550A documents by type
User Manual 2
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What functions can the WJ-SX550A control?
It enables routing of up to 128 cameras to any one of 16 monitors and remote control of camera settings like Pan-Tilt, Zoom, Focus, Iris, Sensitivity, Shutter, and Electronic Zoom.
How many operator access levels are supported?
The system supports 5 operator access levels for setup and operation with password protection.
