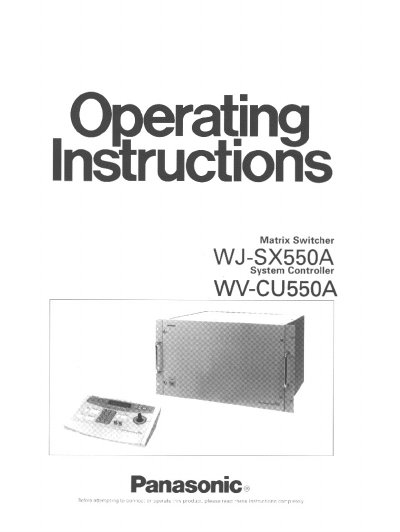

The document serves as a comprehensive user guide for the Panasonic WJ-SX550A Matrix Switcher, which is designed to control up to 128 cameras and 16 monitors. It details features such as crosspoint switching, spot and sequence modes, programmable tours, and alarm activations.
| Max Cameras | 128 cameras |
|---|---|
| Max Monitors | 16 monitors |
| Operating Temperature | -10°C - +50°C (14°F - 122°F) |
| Relative Humidity | below 90% |
| Input Power Source | 120V AC 60 Hz |
It enables routing of up to 128 cameras to any one of 16 monitors and remote control of camera settings like Pan-Tilt, Zoom, Focus, Iris, Sensitivity, Shutter, and Electronic Zoom.
The system supports 5 operator access levels for setup and operation with password protection.
Yes, any tours or group synchronized sequences can be called up by operators manually, by alarm, and time date schedule automatically.
