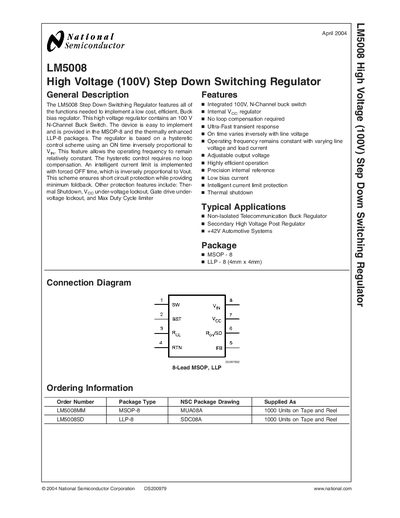

National Semiconductor LM5008 Guide
The LM5008 is a high‑voltage (100 V) step‑down switching regulator that uses a hysteretic control scheme with an on‑time inversely proportional to the input voltage. It is offered in MSOP‑8 and thermally enhanced LLP‑8 packages and includes features such as intelligent current‑limit protection, thermal shutdown, and under‑voltage lockout.
The document contains detailed pin descriptions, electrical characteristics, typical performance curves, and recommended application circuits. It also lists absolute maximum ratings, package dimensions, and compliance information for life‑support and banned‑substance regulations.
National Semiconductor LM5008 specifications
| Input voltage range | 9.5 V to 95 V |
|---|---|
| Package types | MSOP‑8 and LLP‑8 |
| Current‑limit threshold | 0.41 A to 0.61 A |
| Thermal shutdown temperature | 165 °C |
All National Semiconductor LM5008 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the LM5008?
The LM5008 is a high‑voltage (100 V) step‑down switching regulator.
What protection features does the LM5008 include?
It provides thermal shutdown, Vcc under‑voltage lockout, gate‑drive under‑voltage lockout, a max duty‑cycle limiter, and intelligent current‑limit protection.
What is the input voltage range of the LM5008?
The LM5008 operates with an input voltage from 9.5 V up to 95 V.
Which package options are available for the LM5008?
The device is offered in MSOP‑8 and thermally enhanced LLP‑8 packages.
